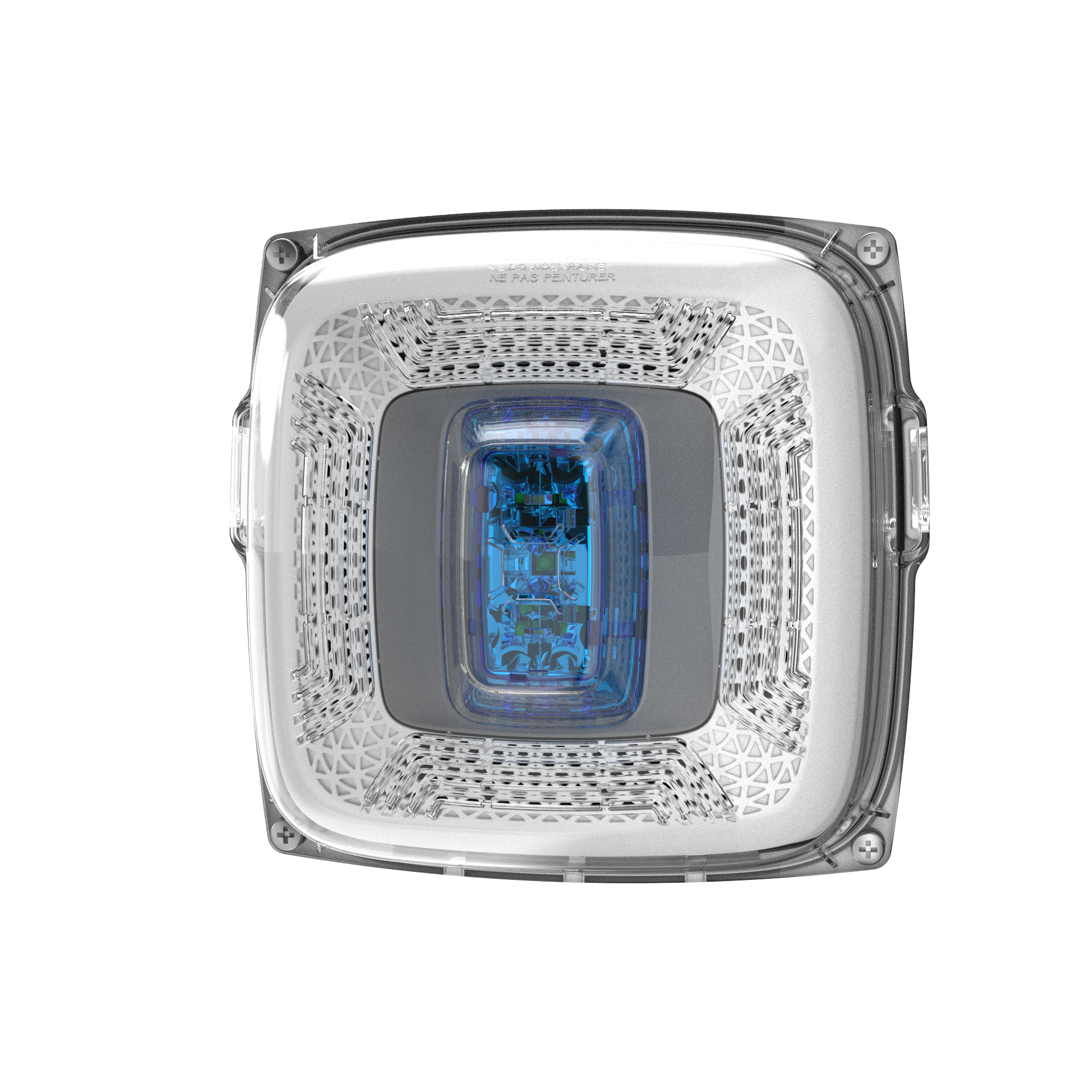

Commander 5 Outdoor Mass Notification Series (GWSPK, GWSS)

The Commander 5 Outdoor Mass Notification Series (GWSPK, GWSS) is a universal outdoor ceiling and wall mount speaker/strobe combination.
The high fidelity speaker is tested to a wide frequency range of 315Hz to 5000Hz, exceeding the UL1480 requirements.
The GWSS Colored Lens Series offers a speaker and visual alarm for warning and emergency notification. Applications
include severe weather, evacuation, emergency response and many more.

The GWSS Colored Lens devices are listed to ANSI/UL 1480, ANSI/UL 1638 and CAN/ULC 541 and/or CAN/ULC S526 and
warranted for 3 years from the date of purchase.

Standard Features

• GWSS Colored Lens nominal strobe voltage 24 VDC
• Tamperproof field selectable candela options
• Amber, Blue and Green Candela settings: 15, 30, 60, 75, 95, 115 candela
• Red Candela settings: 10, 15, 30, 45, 60, 75 candela
• Unit dimensions: 6.76" (17.16 cm) x 6.50" (16.51 cm) x 4.83" (12.26 cm)
• GWSS/GWSPK shipped with outdoor listed backbox and weatherproof cover
• Speaker voltage 25 or 70.7 VRMS standard, field selectable
• Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
• High fidelity speaker. Frequency range 315-5000Hz
• Super-Slide® Bracket, Ease of Supervision Testing
• Checkmate® Instant Voltage Verification
• Prewire entire system, install mounting bracket, then install speaker
• Lower installation and operating costs
• Mount to a standard 4" x 2-1/8" deep back box
• Input terminals 12 to 18 AWG
• Synchronize use the Gentex GTSM Control Module
• Weatherproof cover made of clear Lexan® provides maximum visibility and reliability for effective visible signaling
• Weatherproof enclosure provides an ingress protection rating of 54 (IP54) Pending
• Available in red or white
• Universal wall/ceiling mount
