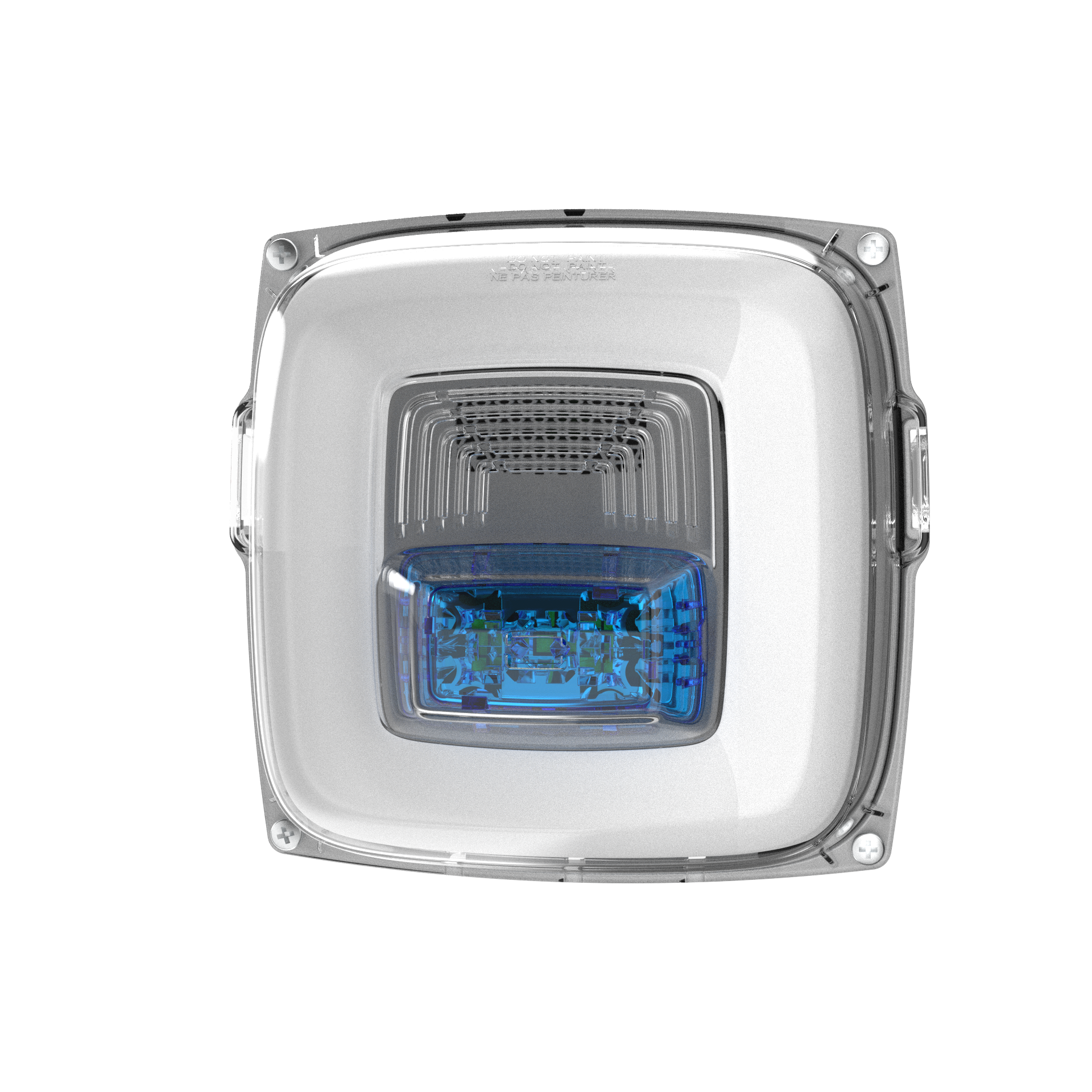

Commander 5 Outdoor Mass Notification Series

The GWS/GWHS Commander 5 Colored Lens Series is an outdoor universal ceiling and wall mount strobe or horn/
strobe combination that offers dependable audible and visual alarms for warning and emergency notification.
Applications include emergency communication, severe weather, emergency response and many more.

The Commander 5 Colored Lens Series is ANSI/UL1638, ANSI/UL464, CAN/ULC 525 and/or CAN/ULC 526 listed. The
ANSI/UL 1638 light output is equal to the candela listed on the product, no derating was required because of the
outdoor enclosure. The GWS/GWHS Colored Lens Series is warranted for three years from date of purchase.

Standard Features

• Nominal Voltage 24 VDC
• GWS/GWHS shipped with outdoor listed backbox and weatherproof cover
• Tamperproof field selectable candela
• Amber, Blue and Green Candela settings: 15, 30, 60, 75, 95, 115 candela
• Red Candela settings: 10, 15, 30, 45, 60, 75 candela
• Unit dimensions: 6.76" (17.16 cm) x 6.47" (16.43 cm) x 4.63" (11.76 cm)
• Super-Slide® Bracket, Ease of Supervision Testing
• Checkmate® Instant Voltage Verification
• Prewire entire system, install mounting bracket, then install signals
• Documented lower installation and operating costs
• Input terminals 12 to 18 AWG
• Horn/strobe switch selection for high or low dBA
• Horn/strobe switch selection for continuous or temporal 2400Hz, mechanical or chime tones
• Horn/strobe switch selection for continuous whoop tone
• Synchronize strobe and/or horn/strobe for all temporal tones using Gentex GTSM Control Module
• Continuous whoop tone cannot be synchronized using Gentex GTSM Control Module
• Temporal 4 tone available when using Gentex GTSM Control Module
• Silence audible while visual appliance will remain flashing with Gentex GTSM Control Module
• Weatherproof cover made of clear Lexan® provides maximum visibility and reliability for effective visible signaling
• Weatherproof enclosure provides an ingress protection rating of 54 (IP54) Pending
• Available in red or white
• Universal wall/ceiling mount
