Commander 5 Mass Notification Series (GSS, GSPK)

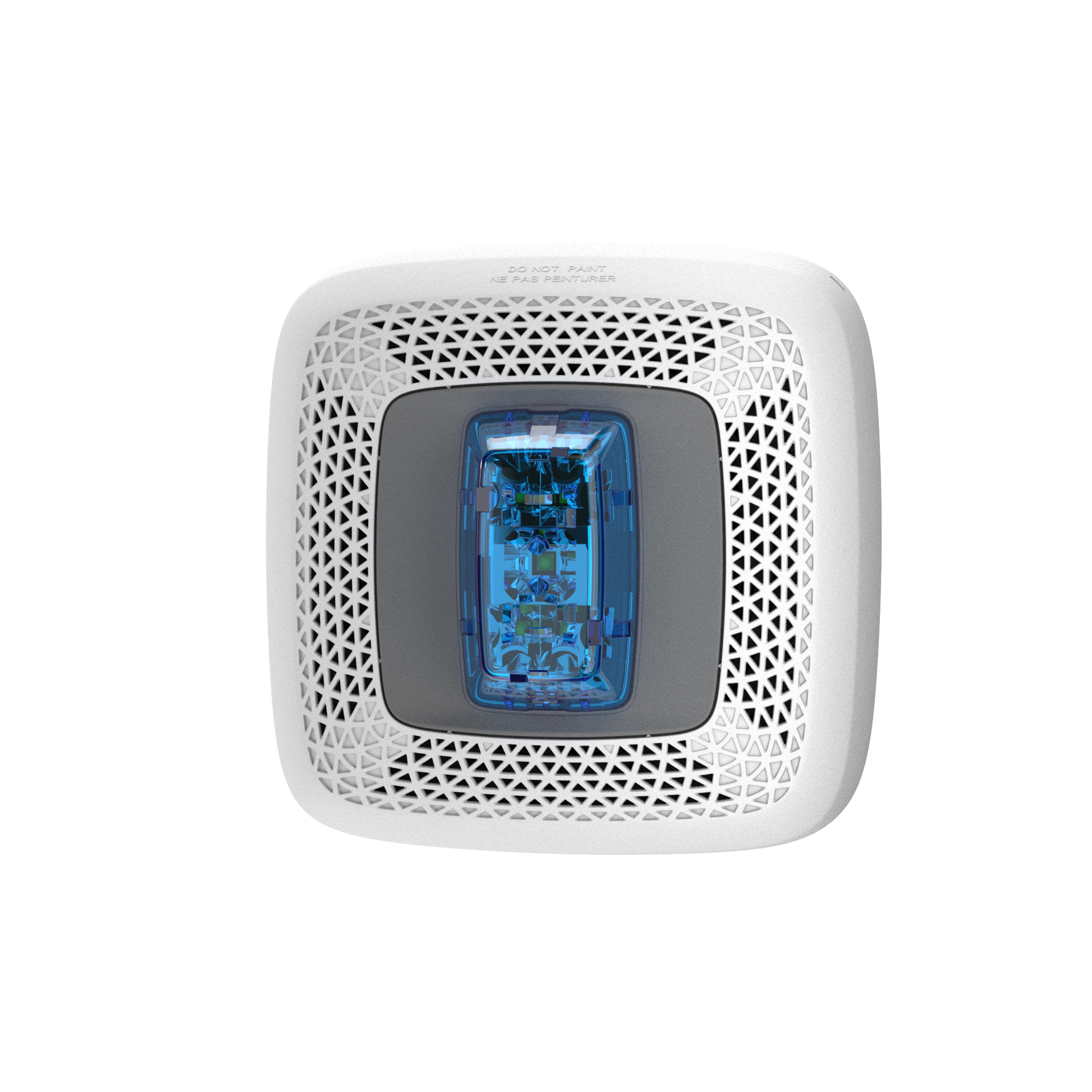

The GSS Colored Lens Commander 5 Series is universal ceiling and wall mount speaker/strobe combination. The high
fidelity speaker is tested to a wide frequency range of 315Hz to 5000Hz, exceeding the UL1480 requirements. The GSS
Colored Lens Series offers a speaker and visual alarm for warning and emergency notification. Applications include
severe weather, evacuation, emergency response and many more.

The Commander 5 Colored Lens Series are ANSI/UL1638, ANSI/UL1480, CAN/ULC 526 and/or CAN/ULC 541 listed.
The Amber lens models are also compliant with the rated candela per the polar dispersion requirements of
ANSI/UL 1638. Therefore, the ANSI/UL 1638 polar plot is equal to the candela listed on the product, no derating
was required. The GSS Colored Lens Series is warrantied for three years from date of purchase.

Standard Features

• Strobe nominal voltage 24 VDC
• Tamperproof field selectable candela options
• Amber, Blue and Green Candela settings: 15, 30, 60, 75, 95, 115 candela
• Red Candela settings: 10, 15, 30, 45, 60, 75 candela
• Speaker/Strobe unit dimensions: 5.9" (14.9 cm) square x 3.4" (8.6 cm) deep
• Speaker voltage 25 or 70.7 VRMS standard, field selectable
• Field selectable power taps: 1/8W, 1/4W, 1/2W, 1W, 2W, 4W
• High fidelity speaker
• Frequency range 315-5000Hz
• Super-Slide® Bracket, Ease of Supervision Testing
• Checkmate® Instant Voltage Verification
• Prewire entire system, install mounting bracket, then install speaker
• Documented lower installation and operating costs
• Mount to a standard 4" x 2-1/8" deep back box
• Input terminals 12 to 18 AWG
• Synchronize with the Gentex GTSM Control Module
• Faceplate available in red or white
• Universal wall/ceiling mount
