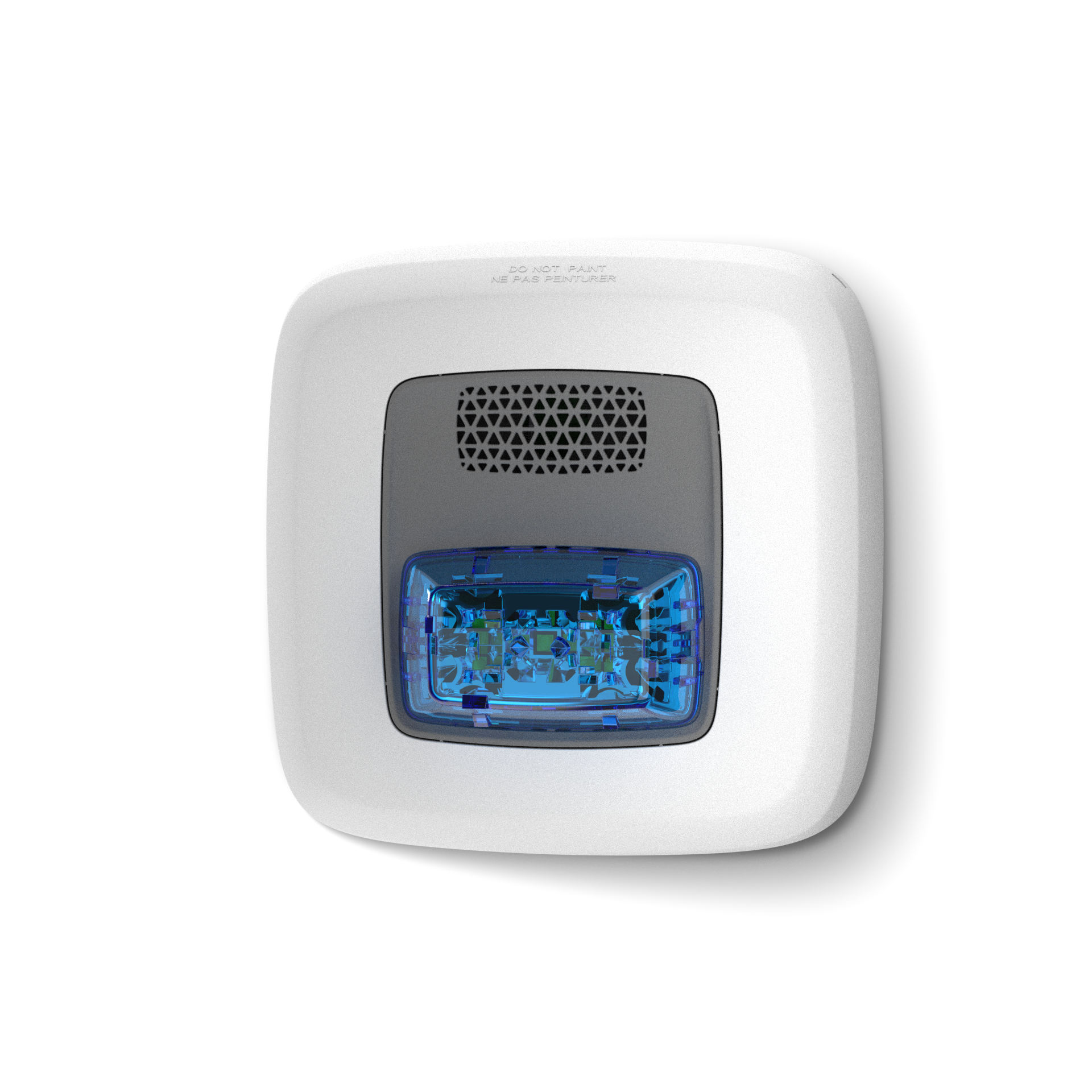

Commander 5 Mass Notification Series

The GS/GHS Commander 5 Mass Notification Series are universal ceiling and wall mount strobe or horn/strobe combination that offers dependable audible and visual alarms for warning and emergency notification. Applications include emergency communication, severe weather, emergency response and many more.

The Commander 5 Colored Lens Series are ANSI/UL1638, ANSI/UL464, CAN/ULC 525 and/or CAN/ULC 526 listed.
The Amber lens models are also compliant with the rated candela per the polar dispersion requirements of
ANSI/UL 1638. Therefore, the ANSI/UL 1638 polar plot is equal to the candela listed on the product, no derating
was required. The GS/GHS Colored Lens Series is warranted for three years from date of purchase.

Standard Features

• Nominal Voltage 24 VDC
• Tamperproof field selectable candela
• Amber, Blue and Green Candela settings: 15, 30, 60, 75, 95, 115 candela
• Red Candela settings: 10, 15, 30, 45, 60, 75 candela
• Unit dimensions: 5.91" (15.0 cm) x 5.91" (15.0 cm) x 2.56" (6.5 cm)
• Super-Slide® Bracket, Ease of Supervision Testing
• Checkmate® Instant Voltage Verification
• Prewire entire system, install mounting bracket, then install signals
• Documented lower installation and operating costs
• Input terminals 12 to 18 AWG
• Horn/strobe switch selection for high or low dBA
• Horn/strobe switch selection for continuous or temporal 2400Hz, mechanical or chime tones
• Horn/strobe switch selection for continuous whoop tone
• Synchable horn/strobe for all temporal tones using Gentex GTSM Control Module
• Continous whoop tone is not Synchable using Gentex GTSM Control Module
• Temporal 4 tone available when using Gentex GTSM Control Module
• Silence audible while visual appliance will remain flashing with Gentex GTSM Control Module
• Surface mount with the GBB box
• Faceplate available in red or white
• Universal wall/ceiling mount
